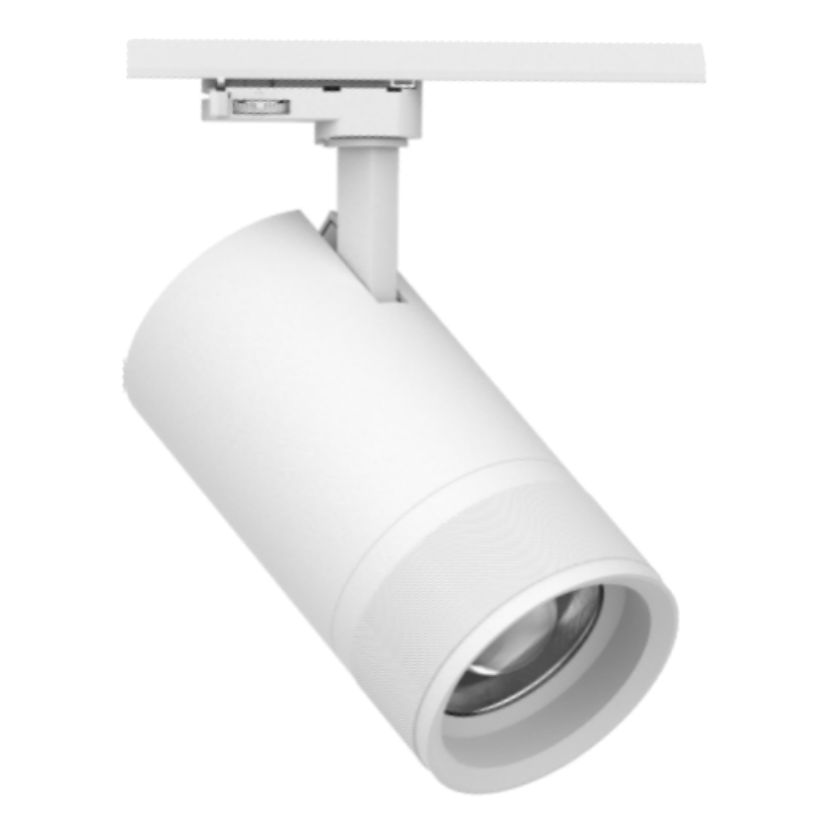

L09352 Spotlight IP20

Aluminium material and powder coating. Zoomable

Aluminium extrusion material and powder coating. -In-track LED Driver Trackspotlight. ON-OFF version Beam angle zooming version, Double adjustability 90°adjustable 355°rotation, ZOOMLENS 15°-58° An ideal accent lighting in residential or commercial. -High level of visual comfort, the high performances and flexibility for every project. High Definition optical lenses in thermoplastic material. -Uniform distribution. White OR Black color finishing as standard. -- Customized power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design. Compatible with GLOBAL / POWERGEAR 3-phase track system.

TECHICAL DATA

750-1800lm
In-track LED Driver
Aluminium lighting fixture, powder coated.
Flicker Free CRI90+ UGR<16
DALI I Triac I 0/1-10V dimming
3-phase Track Rails I In-track LED Driver
Famous brand LED chips CRI90+ 3steps Dimmable

Product is Europe Standard & CE Certificate.

INTERIOR LED TRACK SPOTLIGHT

L09352

IP20

CLASS III

3-phase Track Rails I In-track LED Driver

ECO Energy Saving

Aluminium material lighting fixture, powder coated.

Eyes friendly CE certificate RoHS standard

CRI90+ 3SDCM COB LED

Triac I 0/1-10V I DALI dimmable

Flicker Free

Warranty 5 Years

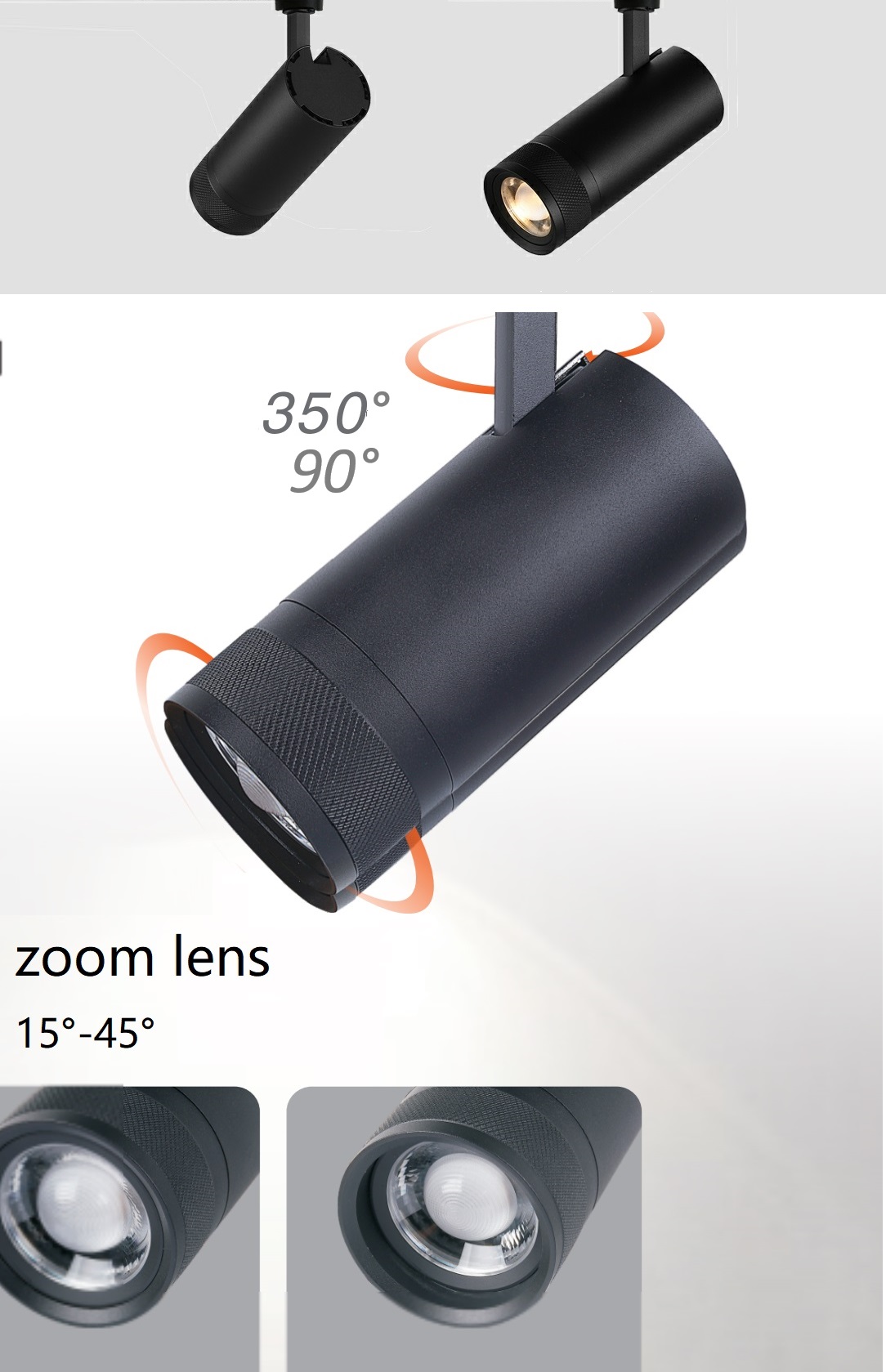

BEAM ANGLE ZOOMING VERSION 15°-58°

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA


L09352-10	10W	750lm	50xH132mm	mm	250mA


L09352-15	15W	1100lm	62xH159mm	mm	350mA


L09352-25	25W	1800lm	72xH171mm	mm	650mA

FEATURES

Aluminium extrusion material and powder coating. -In-track LED Driver Trackspotlight. ON-OFF version Beam angle zooming version, Double adjustability 90°adjustable 355°rotation, ZOOMLENS 15°-58° An ideal accent lighting in residential or commercial. -High level of visual comfort, the high performances and flexibility for every project. High Definition optical lenses in thermoplastic material. -Uniform distribution. White OR Black color finishing as standard. -- Customized power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design. Compatible with GLOBAL / POWERGEAR 3-phase track system.

In-track LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
10W 250mA 15W 350mA 25W 650mA

Download

Installation
