Ø35 I 24° I pinhole

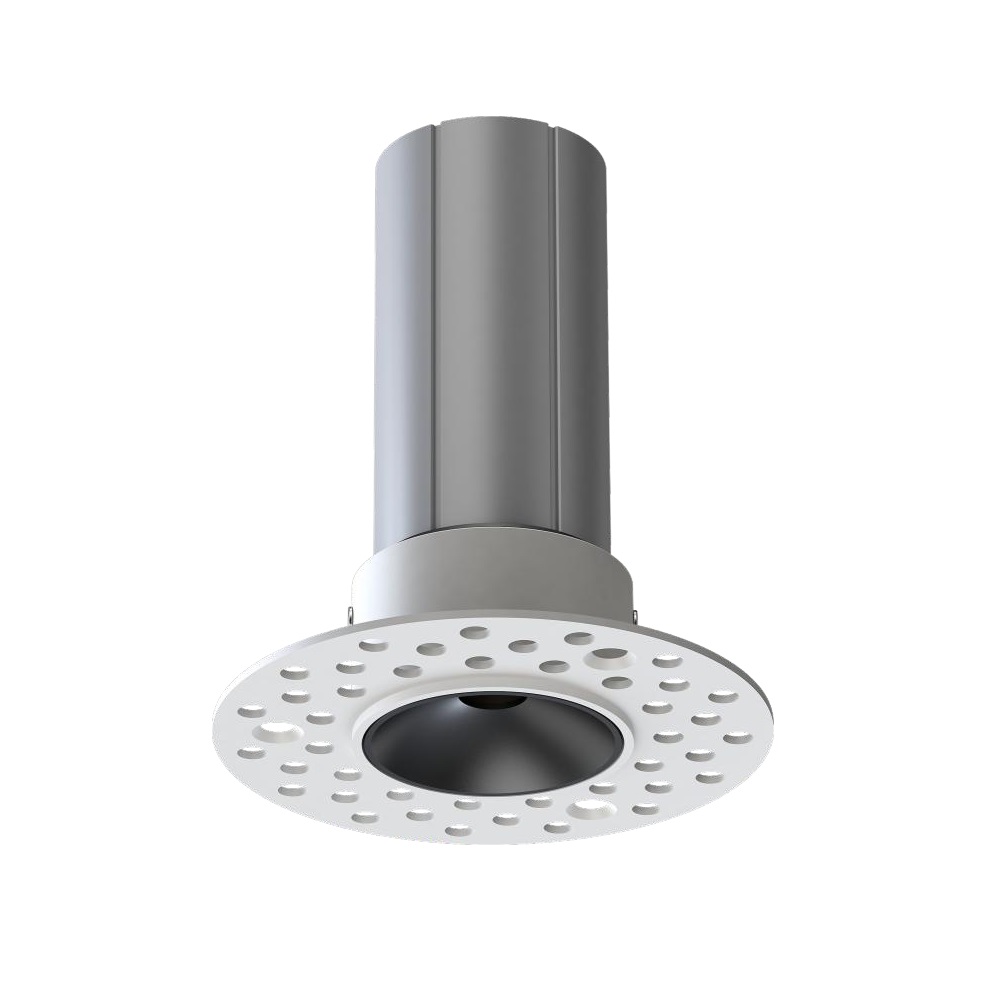

L06766 Spotlight    IP20

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

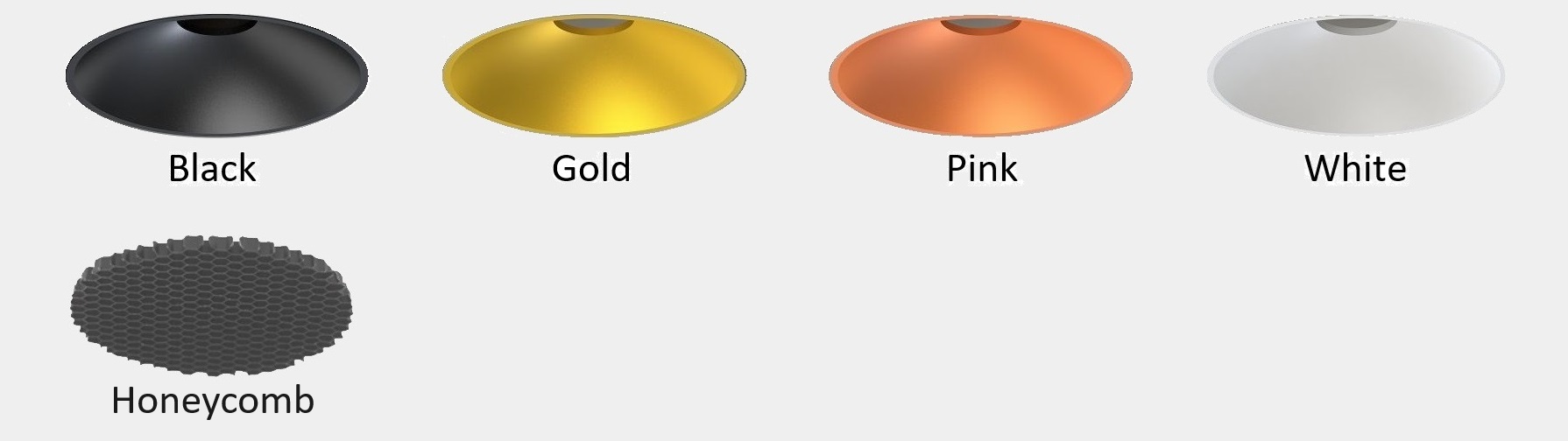

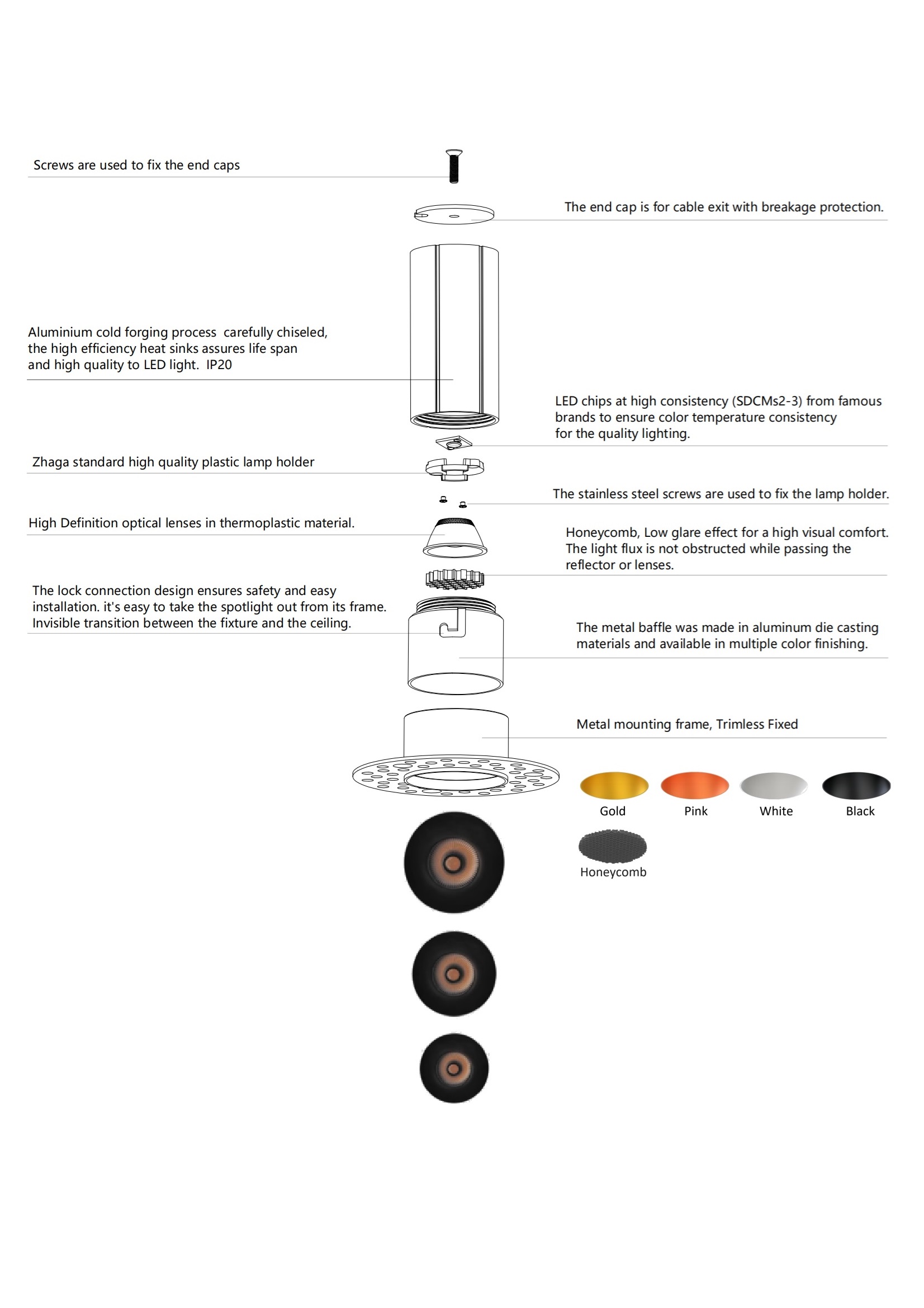

The fixing spotlight is modular design. They comprise a LED light module and a metal mounting frame. Pinhole spotlight offer uniform distribution . Visual comfort low glare optic with recessed light source. output beams 24°. High Definition optical lenses in thermoplastic material, crossing lighting technology. Achieve a pleasing and clear I soft effect of the light spot. Specialized optical filters honeycomb can be ordered. 2SDCM to ensure color temperature consistency for the quality lighting. High level of cooling system to ensure the spotlight long lifetime. Excellent colour rendering with CRI90. Metal baffle is available in multiple color finishing, The basic model comes in Black I White I Pink I Gold colors. Customized color finishing, power changes are possible depending on the request and the quantity. The lock connection design between the installation kit and the spotlight module to ensure safety and easy installations. Meant that it's easy to take the spotlight module out from its frame(installation kit). Matched invisible transition between the fixture and the ceiling. Meanwhile, the spotlight matched DALI Dimming down to 0.1%. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. It is presented to its customers as a clean soft and non-dazzling product.

TECHICAL DATA

  • 350lm
  • Remote LED Driver
  • 300-400mm cable with quick connector.
  • Ceiling Recessed Installation
  • DALI I Triac I 0/1-10V I DTW dimming
  • Fixing Spotlight I Trimless
  • CITIZEN COB LED CRI90 2SDCM

Product is Europe Standard & CE Certificate.


INTERIOR LED RECESSED DOWN SPOTLIGHT

L06766

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium materials lighting fixture, powder coated.

Ceiling Recessed I Trimless

300-400mm cable with quick connector.

Famous brand COB LED CRI90 2SDCM

Flicker Free I Remote LED Driver version.

Recessed light source. Visual comfort

ON/OFF I DALI I Triac I 0/1-10V dimming

VISUAL COMFORT AND UNIFORM DISTRIBUTION I PINHOLE SPOTLIGHT

Code System Power
W
Output Lumen
lm

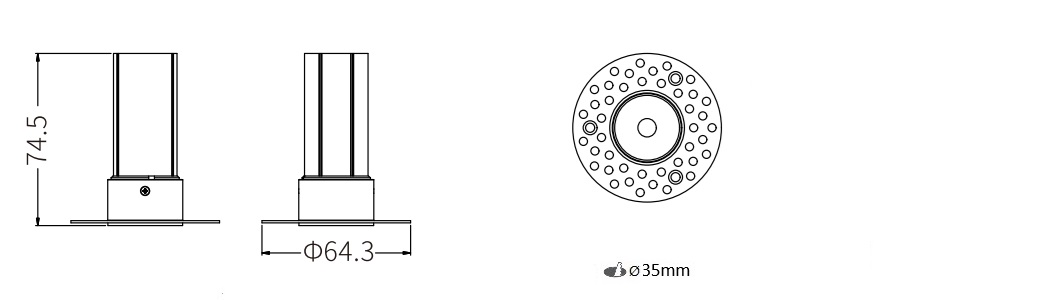

Dimension
mm
Cut Hole
mm
Power Supply
mA
L06766-5 5W 350lm
65xH75mm
35mm
120mA

FEATURES

The fixing spotlight is modular design. They comprise a LED light module and a metal mounting frame. Pinhole spotlight offer uniform distribution . Visual comfort low glare optic with recessed light source. output beams 24°. High Definition optical lenses in thermoplastic material, crossing lighting technology. Achieve a pleasing and clear I soft effect of the light spot. Specialized optical filters honeycomb can be ordered. 2SDCM to ensure color temperature consistency for the quality lighting. High level of cooling system to ensure the spotlight long lifetime. Excellent colour rendering with CRI90. Metal baffle is available in multiple color finishing, The basic model comes in Black I White I Pink I Gold colors. Customized color finishing, power changes are possible depending on the request and the quantity. The lock connection design between the installation kit and the spotlight module to ensure safety and easy installations. Meant that it's easy to take the spotlight module out from its frame(installation kit). Matched invisible transition between the fixture and the ceiling. Meanwhile, the spotlight matched DALI Dimming down to 0.1%. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. It is presented to its customers as a clean soft and non-dazzling product.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
5W   120mA
