IN-TRACK DRIVER - DALI Dim

L09117 Spotlight    IP20

Aluminium cold forging material and powder coating. - Excellent cooling system. Integrated DALI dimmable

European standard 6wires 3-phase trackspotlight, Aluminium lighting fixture, cold forging process and powder coated, Integrated cooling system to ensure the spotlight long lifetime. Luminaires are powered by a Integrated DALI dimmable Driver and adaptor. An ideal solution for accent lighting. the high performances and flexibility for every project. High Definition optical lenses in thermoplastic material. -Uniform distribution. It allows 360°rotation about the vertical axis and 90° tilting relative to the horizontal plane make the spotlight highly flexible and easy to handle, the light is emitted exactly where you want it. Specialized optical filters can be ordered. The light spots were natural transition, clear and soft. 3SDCM to ensure color temperature consistency for the quality lighting. Excellent colour rendering with CRI90+, it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. The standard product comes in RAL 9005 Black color finishing I RAL 9016 White color finishing. On the request it can be offered in any RAL colour, matching the specific look and feel of your design.

TECHICAL DATA

  • 1800-2700lm
  • IN-TRACK DRIVER LED TRACKSPOTLIGHT
  • Aluminium lighting fixture, powder coated.
  • Integrated cooling system to ensure the spotlight long lifetime.
  • Double adjustability 90°adjustable 355°rotation,
  • European standard 6 wires 3-phase track rails
  • Famous brand COB LED Chips I CRI90+ I 3SDCM

Product is Europe Standard & CE Certificate.

IN-TRACK DRIVER LED TRACKSPOTLIGHT

L09117

IP20

CLASS III

European standard 6 wires 3-phase track rails

ECO Energy Saving. I CE certificate I RoHS standard

Aluminium cold forging and powder coating housing.

An ideal solution for accent lighting

Famous brand COB LED Chips I CRI90+ I 3SDCM

Integrated DALI dimm LED Driver I Flicker Free

Double adjustability 90°adjustable 355°rotation

Warranty 5Years

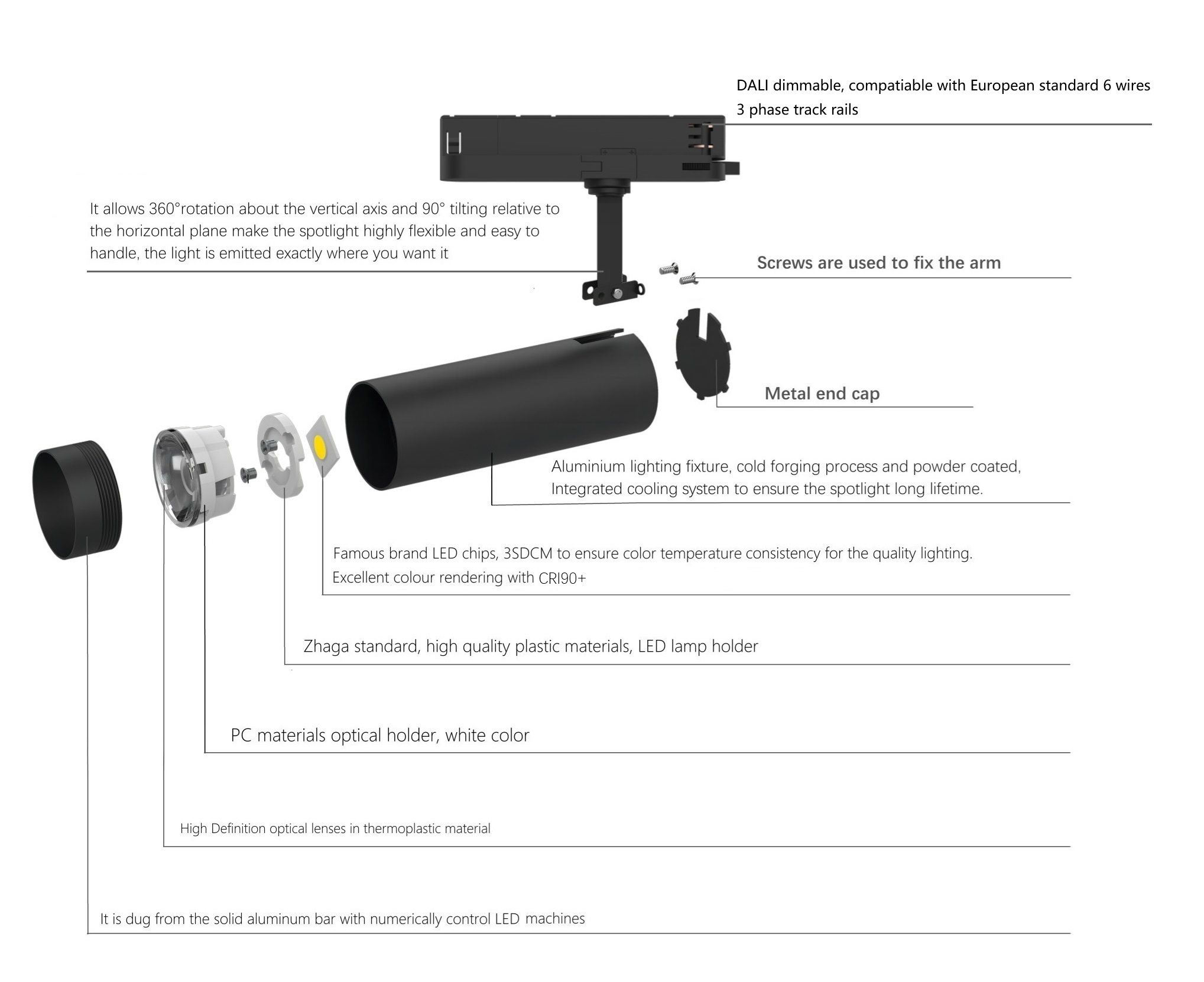

EXCELLENT COOLING SYSTEM AND UNIFORM DISTRIBUTION

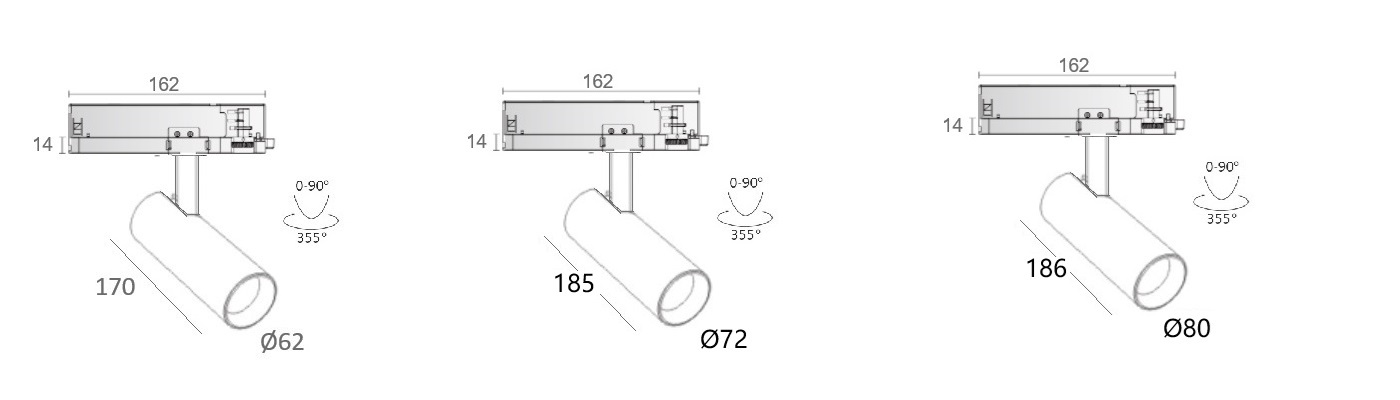

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L09117-20 20W 1800lm
62xH170mm
mm		 500mA
L09117-25 25W 2250lm
72xH185mm
mm		 600mA
L09117-27 27W 2700lm
80xH186mm
mm		 650mA

FEATURES

European standard 6wires 3-phase trackspotlight, Aluminium lighting fixture, cold forging process and powder coated, Integrated cooling system to ensure the spotlight long lifetime. Luminaires are powered by a Integrated DALI dimmable Driver and adaptor. An ideal solution for accent lighting. the high performances and flexibility for every project. High Definition optical lenses in thermoplastic material. -Uniform distribution. It allows 360°rotation about the vertical axis and 90° tilting relative to the horizontal plane make the spotlight highly flexible and easy to handle, the light is emitted exactly where you want it. Specialized optical filters can be ordered. The light spots were natural transition, clear and soft. 3SDCM to ensure color temperature consistency for the quality lighting. Excellent colour rendering with CRI90+, it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. The standard product comes in RAL 9005 Black color finishing I RAL 9016 White color finishing. On the request it can be offered in any RAL colour, matching the specific look and feel of your design.

IN-TRACK DRIVER LED TRACKSPOTLIGHT Accessoires Beam Angle Color Temperature Finishes
20W   500mA
25W   600mA
27W   650mA
