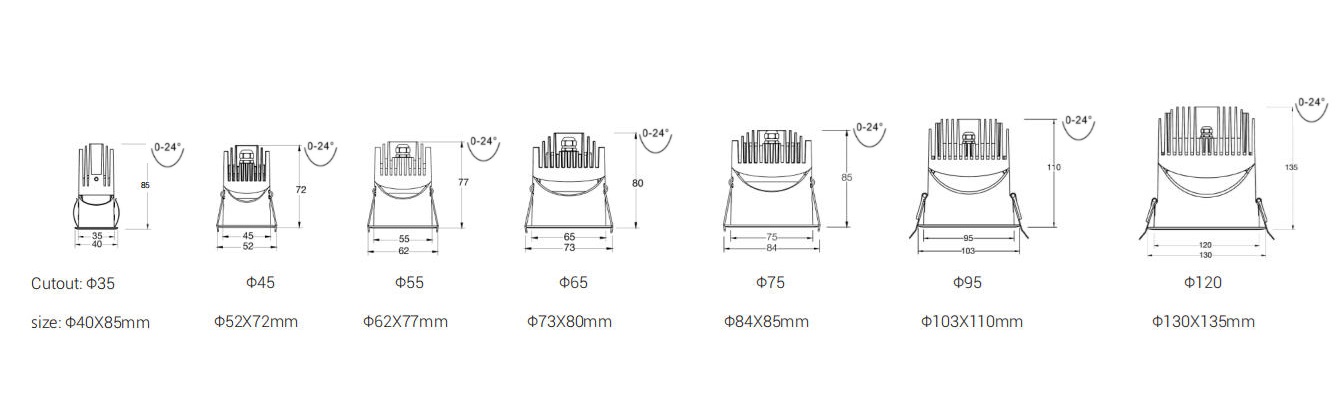

Ø45 I Ø55 I Ø65 I Ø75 I Ø95

L03725 Spotlight    IP54

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

Same appearance both Fixed and Adjustable .The spotlight offer uniform distribution . Visual comfort low glare optic with recessed light source. available for a few different output beams. Specialized optical filters honeycomb can be ordered. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product. Ø55 I Ø65 I Ø75mm available for 10° Moreover, the IP54 and IP65 rating on same one luminaries ( IP54 standard, IP65 customized)means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations..

TECHICAL DATA

  • 350-600lm
  • Remote LED Driver
  • 300-400mm cable with quick connector.
  • Ceiling Recessed Installation I Narrow Trim
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • The lighting fixture is 30°adjustable
  • Famous brand COB LED CRI90 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03725

IP54

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die-casting lighting fixture, powder coated.

Ceiling Recessed Installation

300-400mm cable with quick connector.

Famous brand COB LED CRI90 3SDCM

Deeply recessed light source. I Super slim trim

Remote LED Driver

DALI I Triac I 0/1-10V I Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L03725-7 7W 350lm
52xH72mm
45mm
150mA
L03725-8 8W 400lm
62xH77mm
55mm
200mA
L03725-10 10W 505lm
73xH80mm
65mm
250mA
L03725-12 12W 600lm
84xH85mm
75mm
300mA

FEATURES

Same appearance both Fixed and Adjustable .The spotlight offer uniform distribution . Visual comfort low glare optic with recessed light source. available for a few different output beams. Specialized optical filters honeycomb can be ordered. Same appearance both Fixed and Adjustable . The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product. Ø55 I Ø65 I Ø75mm available for 10°. Moreover, the IP54 and IP65 rating on same one luminaries ( IP54 standard, IP65 customized)means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations..

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   150mA
8W   200mA
10W   250mA
12W   300mA
